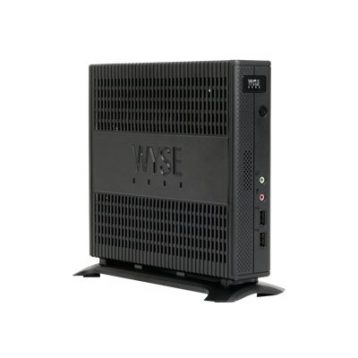

Description
Specifications
Processors AMD G-Series dual core T48E 1.4GHz with AMD RadeonTM HD 6250 graphics
Quad core AMD G-Series SOC 1.5GHz with integrated Radeon HD 8000 graphicsMemory
D50D 2GB Flash / 2GB DDR3 RAM SSD storage also supported D90DW 2GB Flash / 2GB DDR3 RAM; SSD storage also supported D90D7 &D90Q7 4GB Flash / 2GB DDR3 RAM; SSD storage also supported D00D 0GB Flash / 2GB DDR3 RAM; SSD storage also supported Expandable up to 16GB Flash / 4GB DDR3 RAM / SSD storage also supported I/O peripheral support One DisplayPort. (Optional DisplayPort to DVI-I adapter available)
One DVI-I port. DVI to VGA (DB-15) adapter included
Four external USB 2.0 ports (2 front; 2 back)
D90Q7: Four USB 2.0 ports and two USB 3.0 ports
Serial and parallel connectivity supported through USB 2.0 adapters
Enhanced USB keyboard with Windows Keys (104 keys) and PS/2 mouse port. PS/2 optical mouse included.Networking 10/100/1000 Base-T Gigabit ethernet
RJ45 or SFP module
Factory options: Single and dual Band 802.11 a/b/g/n integrated wireless with external dual antenna
SFP module support for Fiber NIC network connectivity
Bluetooth connectivityDisplay VESA monitor support with Display Data Control (DDC) for automatic setting of resolution and refresh rate
DisplayPort: 2560×1600@32bpp
DVI-I: 1920×1200@32bpp
Dual display: 1920×1200@32bppAudio Composite audio jack: 1/8-inch mini, 16-bit stereo.
Internal mono speaker.Physical Height: 6.7 inches (170mm)
Width: 1.6 inches (40mm)
Depth: 7.3 inches (185mm)Power Average power usage with device connected to 1 keyboard with 1 PS/2 mouse and 1 monitor: Under 9 Watts.
